Molex stac64 automotive connectivity system
The Molex stac64 automotive connectivity system now includes 14
Circuit Hybrid headers
and sockets. The Molex stac64 automotive connection system is a
2.54 mm (0.100 ") pin
pitch stackable connection system, offering a wide range of circuit
sizes. Without the need
for custom tools, the stac64 system gives OEMs and equipment
manufacturers greater
design flexibility to support low-level signal requirements and
power applications above 30.0a.
The Molex statc64 automotive connection system also enables
automotive manufacturers to
use the socket assembly as an independent component, combining
multiple headers to
support a wide range of signal and power requirements for equipment
and modules.
Molex stac64 is a standard product system based on the mechanical
and electrical
performance characteristics of uscar-2 class II for unsealed
connector applications.
The connector can be plugged into the existing wiring harness
connector designed
according to the area occupied by uscar / EWCAP industry.

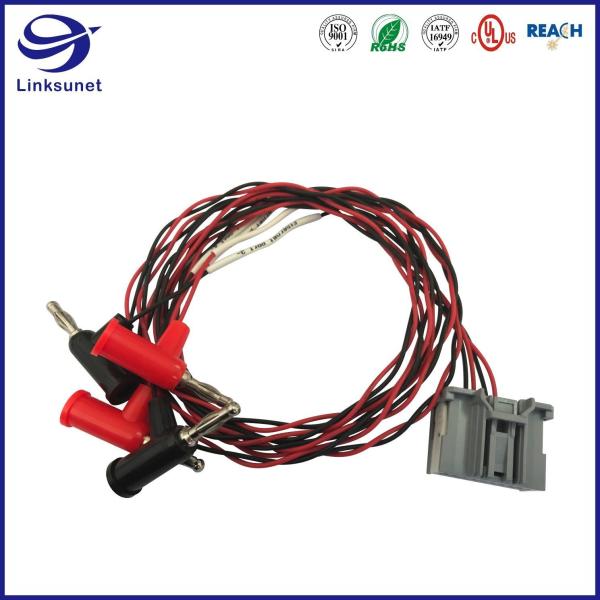

| Servo Driver Wire Harness with 1007 24AWG Cable add 34729 2.54mm
Connectors |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex, LLC |
| Series | 34729 |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 8 / 12 / 16 / 20 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Gray |
| Features | Polarizing Key |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
