Molex stac64 automotive connectivity system
The Molex stac64 automotive connectivity system now includes 14
Circuit Hybrid headers and
sockets. The Molex stac64 automotive connection system is a 2.54 mm
(0.100 ") pin pitch
stackable connection system, offering a wide range of circuit
sizes. Without the need for custom
tools, the stac64 system gives OEMs and equipment manufacturers
greater design flexibility to
support low-level signal requirements and power applications above
30.0a. The Molex statc64
automotive connection system also enables automotive manufacturers
to use the socket assembly
as an independent component, combining multiple headers to support
a wide range of signal and
power requirements for equipment and modules.
Molex stac64 is a standard product system based on the mechanical
and electrical performance
characteristics of uscar-2 class II for unsealed connector
applications. The connector can be plugged
into the existing wiring harness connector designed according to
the area occupied by uscar / EWCAP
industry.

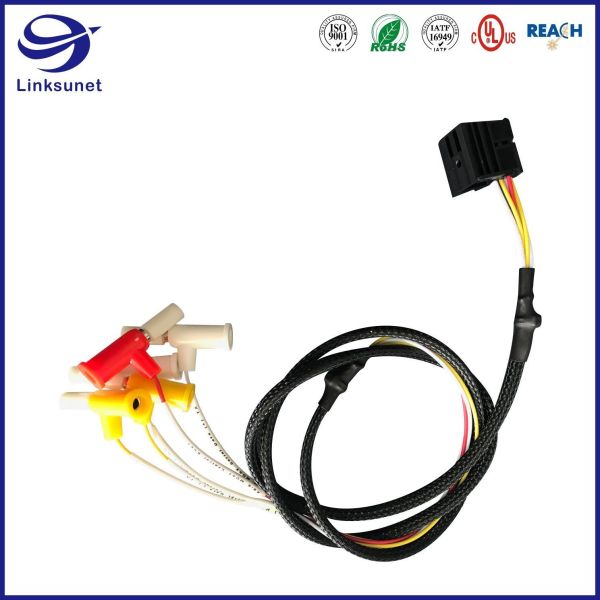

| Automobile OEM Wire Harness with 34729 3.5mm Latch Lock crimp plug |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex, LLC |
| Series | 34729 |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 8 / 12 / 16 / 20 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Gray |
| Features | Polarizing Key |
| Automobile OEM Wire Harness with 34729 3.5mm Latch Lock crimp plug |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Contacts |
| Manufacturer | Molex, LLC |
| Series | CTX64 , 34803 |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 20AWG |
| Contact Finish | Tin |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
